Specifications saved in 2018

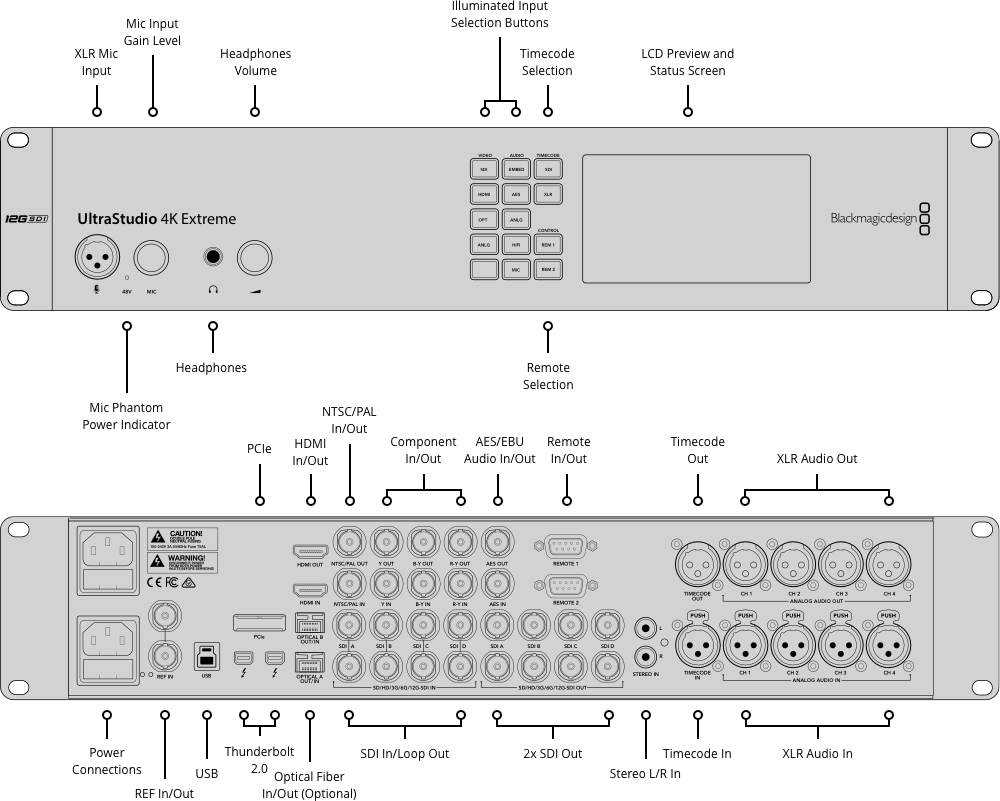

UltraStudio 4K Extreme
Technical Specifications
Description
Advanced rack mount Thunderbolt and PCI Express capture and playback for SD, HD, Ultra HD up to 60p and DCI 4K, including 4:4:4 and dual channel 3D stereoscopic support. Features 12G-SDI and HDMI 2.0 so you can work with the latest high frame rate Ultra HD and 4K formats, along with analog video connections, timecode, analog XLR and AES/EBU audio, plus a built in hardware H.265 encoder.
Price
$2,995
Connections
SDI Video Inputs
2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable.
SDI Video Outputs
2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable.
SDI Video Loop
4 x reclocked SD/HD/2K/4K linked to corresponding inputs.
SDI Video Repeated Outputs
2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable.
Analog Video Inputs
1 x Component YUV on 3 BNCs, 1 x composite NTSC/PAL on 1 BNC.
Analog Video Outputs
1 x Component YUV on 3 BNCs, 1 x composite NTSC/PAL on 1 BNC.
Analog Audio Inputs
4 Channels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connectors.
Analog Audio Outputs
4 Channels of professional balanced analog audio via XLR connectors.
Optical Fiber Input/Output (Optional)
2 x 12Gb/s Optical Fiber.
AES/EBU Audio Inputs
2 Channels unbalanced with sample rate converter on BNC connector.
AES/EBU Audio Outputs
2 Channels unbalanced on BNC connector.
SDI Audio Inputs
16 Channels embedded in SD/HD/2K/4K.
SDI Audio Outputs
16 Channels embedded in SD/HD/2K/4K.
HDMI Video Inputs
HDMI 2.0 type A connector with support for 2160p60.
HDMI Video Outputs
HDMI 2.0 type A connector with support for 2160p60.
HDMI Audio Inputs
8 Channels embedded in SD/HD/4K.
HDMI Audio Outputs
8 Channels embedded in SD/HD/4K.
Mic Input
1 x 48V microphone input via XLR connector. Phantom Power switchable via software control.
Timecode Input
1 x XLR Input.
Timecode Output
1 x XLR Output.
Sync Input
1 x Reference input. Tri-Sync or Black Burst.
Sync Output
1 x Reference Loop Output. Tri-Sync or Black Burst.
Device Control
2 x Sony™ compatible RS-422 deck control ports. Serial ports TxRx direction reversible under software control.
Computer Interface
Thunderbolt™ 2 (Mac OS and Windows only), PCI Express 4 lane generation 2.
Power
2 x built-in international AC power supply with IEC C14 inlet. 120-240V, 50-60Hz.
Supported Codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.
Software
Software Included
DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal Software Upgrade
Firmware built into software driver. Software driver loads upgrades at system start or via updater software.
Software Applications
Steinberg Nuendo
Other supported applications include:
The Foundry Nuke, Grass Valley Edius, Sony Catalyst Production Suite, Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro & Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X & Studio & Broadcast, Uniplay One & CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D.
SDI Video Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Video Standards
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Video Standards
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
3D Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 435, SMPTE 2081, SMPTE 2082, ITU-R BT.656 and ITU-R BT.601.
SDI Metadata Support
RP 188/SMPTE 12M-2 and closed captioning.
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24-bit.
SDI Video Sampling
4:2:2, 4:4:4
SDI Color Precision
8, 10, 12-bit RGB 4:4:4 in all modes up to UHD 30p, and 8, 10-bit YUV 4:2:2 in all modes.
SDI Color Space
REC 601, REC 709.
SDI Configuration
SDI output is configurable for Quad Link 3Gb/s via Blackmagic Desktop Video Utility. When using single link 12Gb/s on SDI A or dual link 6Gb/s on SDI A and B, SDI C and D will output downconverted HD.
HDMI Video Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Video Standards
4K DCI 23.98p, 4K DCI 24p, 4K DCI25p
3D Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
1080i50, 1080i59.94, 1080i60
HDMI Audio Sampling
Television standard sample rate of 48 kHz and 24-bit.
HDMI Video Sampling
4:4:4, 4:2:2 & 4:2:0
HDMI Color Precision
8, 10 & 12-bit (Deep Color).
HDMI Configuration
HDMI 2.0a supports Deep Color and HDR. Automatically configures to connected display.
Multiple Rate Support
HDMI and SDI video connections are switchable between SD/HD/2K and 4K. Component analog video connections are switchable between SD and HD.
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Processing
Encoding
Hardware based real time h.265 encoder.
Ultra HD Down Conversion
Built in, high quality hardware down converter outputs Ultra HD to HD with down-converted signal on SDI outputs C & D and HDMI output when connected to an HD-only TV.
HD to SD Down Conversion
HD to SD with down-converted signal on SDI output B, Component and Composite NTSC/PAL. SD output selectable between letterbox, anamorphic 16:9 and center cut 4:3.
HD Up Conversion
Built-in, high quality hardware up conversion from SD to 720HD or 1080HD on playback. Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom.
HD Cross Conversion
Built in, high quality hardware cross conversion from 720p to 1080i and 1080i to 720p on playback.
Real Time Effects
DaVinci Resolve, Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Colorspace Conversion
Hardware based real time.
3D Processing
Dual stream and frame packed capture & playback.
Physical Installation
Requires computer with either a Thunderbolt port or available PCI Express slot.Blackmagic PCIe Cable Kit available separately. Please check support pages to see the full system requirement.
Physical Specifications
Power Requirements
2 x Internal 120 - 240V AC
EMC Certifications
FCC, CE and C-Tick.
Environmental Specifications
Operating Temperature
5° to 40° C (41° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
UltraStudio 4K Extreme
SD card with software and manual
DaVinci Resolve SD card
Warranty
3 Year Limited Manufacturer's Warranty.
