SmartView HD
Technical Specifications
Description
SmartView HD features an amazing 17" LCD screen that lets you monitor SD, HD and 3Gb/s SDI video in full resolution HD. Just as impressive is its ultra slim, 6RU rack mountable design. Only an inch thick, it’s the perfect size for all your SDI monitoring needs. What's more, SmartView HD can be conveniently adjusted from your computer via Ethernet.
Price
$795

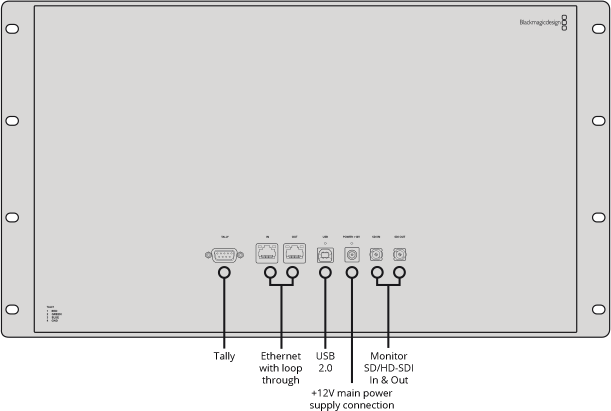

Connections
SDI Video Input
Automatically switches between SD, HD and 3G-SDI. Reclocked loop through output.
Multi Rate Support
Auto detection of 2K, HD or standard definition inputs.
Updates and Configuration
Via USB 2.0 high speed (480 Mb/s)
Ethernet
10/100 BaseT with loop through.
Tally
9-pin D connector
Standards
SDI Compliance
SMPTE 259M , SMPTE 292M , SMPTE 296M , SMPTE 372M , SMPTE 424M Level B and SMPTE 425M .
SDI Color Space
REC 601 , REC 709
SDI Auto Switching
Automatically selects between SD, HD and 3 Gb/s SDI .
Video Sampling
4:2:2 and 4:4:4
SDI Format Support
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Format Support
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Software
Internal Software Upgrade
Via included firmware updater software.
Settings Control
Via USB or Ethernet.
Operating Systems
macOS 10.12 Sierra,
macOS 10.13 High Sierra or later,
Windows 8.1 or Windows 10.
Display
Display Element
TFT Active Matrix LCD.
Display Resolution
1920 x 1080 pixels
Response
< 12 ms
Contrast Ratio
Typically 650:1
Color Depth
262,144 Colors
Display Orientation
Displays can rotate upside down for optimum viewing angle.
Power Requirements
Power Supply
12V universal power supply included with international socket adapters for all countries.
Power Consumption
< 20 Watts
Operational Voltage Range
12V - 15V

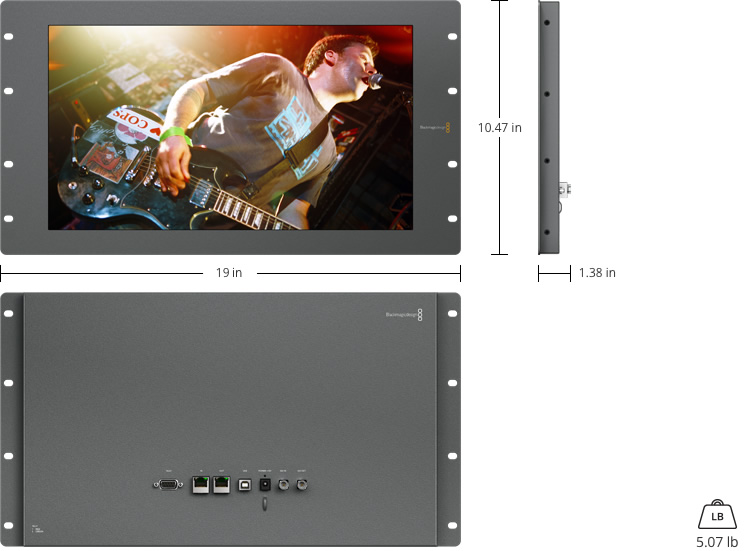

Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
SmartView HD
Power Supply
SD card with software and manual
Warranty
12 Months Limited Manufacturer's Warranty.
