Videohub Master Control
Technical Specifications
Description
When you need to access your whole router without sacrificing speed, then Videohub Master Control lets you scroll your router sources and destinations with the easy to use spin knob control or via direct button entry. You can even see all routes on the beautiful LCD! Powers via DC or the Ethernet connection!
Price
$695
Connections
Ethernet
RJ45 Ethernet with Power over Ethernet supported, without power supplied on loop Ethernet output.
Updates
USB 2.0 high speed (480Mb/s) interface.
Power
+12V DC input
Hardware Control

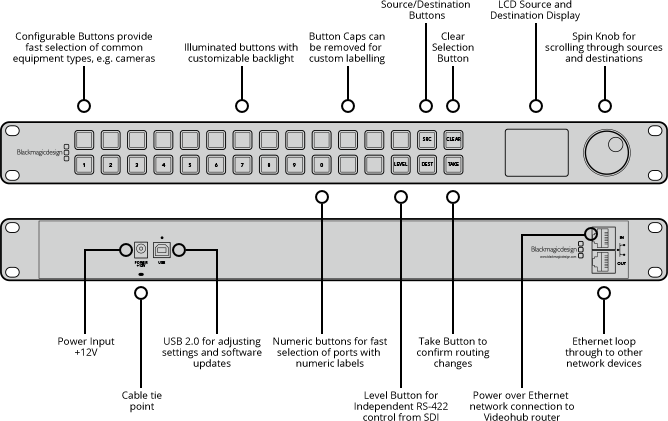

15 assignable buttons with scroll wheel for fast selection of source and destination. LCD information screen.
Internal Software
Internal Software upgrade via included firmware updater application via USB.
Operating Systems
Mac OS X 10.10 Yosemite,
Mac OS X 10.11 El Capitan or later.
Windows 8.1 or Windows 10.
Physical Installation
1 rack unit size. Less than an inch deep.
Power Requirements
Power Fail Protection
Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall.
Power Supply
1 x Universal power supply included with international socket adapters for all countries.
Physical Specifications
Weight: 827g
Depth (not including connectors): 36mm
Width: 482mm
Overall depth (including connectors): 40mm
Height: 44mm
Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)
Storage temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Videohub Master Control
Universal power supply included with international socket adapters
Warranty
12 Months Limited Warranty.
