Mini Converter HDMI to SDI 4K
Technical Specifications
Description
Mini Converter HDMI to SDI 4K includes everything you need to convert from HDMI devices to SD, HD, 3G and 6G-SDI video in SD, HD and Ultra HD video formats. You can easily embed SDI audio from HDMI, AES/EBU or balanced analog audio inputs. Get the perfect solution to convert HDMI consumer cameras to SDI, or add SDI outputs to computers with HDMI connections!
Price
$295

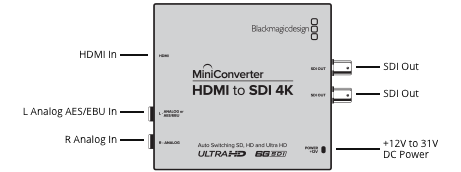

Connections
SDI Video Outputs
2 x SDI Video Outputs. Automatically matches the SD, HD and 6G-SDI HDMI video input.
HDMI Video Inputs
HDMI type A in
Analog Audio Inputs
2 channels of professional balanced analog audio with standard 1/4 inch jack connections.
Digital Audio Inputs
2 channels of AES/EBU digital audio.
Multi Rate Support
Auto detection of SD, HD or 6G-SDI.
Updates and Configuration
USB
Reclocking
Yes
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4K Video Standards
4K DCI p24
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, SMPTE ST-2081, ITU-R BT.656 and ITU-R BT.601.
SDI Video Rates
SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K.
SDI Video Sampling
4:2:2
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision
4:2:2
SDI Color Space
YUV
SDI Auto Switching
Automatically detects SD, HD or 6G-SDI.
HDMI Video Standards
525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
HDMI Color Space
YUV and RGB
HDMI Color Precision
4:2:2 and 4:4:4
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Format Conversion
HD down conversion
Software
Software Control
Mac OS X™ and Windows™ software upgrade via USB.
Internal Software Upgrade
Via included updater application.
Operating Systems
macOS 10.12 Sierra,
macOS 10.13 High Sierra or later,
Windows 8.1 or Windows 10.
Settings Control
Mini Switches or USB software.
Power Requirements
Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption
4.44 Watts
Operational Voltage Range
12 - 31V DC
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Mini Converter HDMI to SDI 4K
12V universal power supply with international socket adapters
Warranty
3 Year Limited Manufacturer's Warranty.
