Mini Converter UpDownCross
Technical Specifications
Description
UpDownCross converter includes both up, down and cross conversion as well as a 4 field standards converter! Fantastic for placement on deck SDI inputs, so you always get NTSC or PAL into the deck. Use the cross converter to convert 720p to 1080i or 1080i to 720p so you can edit once and master in SD, 720p and 1080i video!
Price
$295

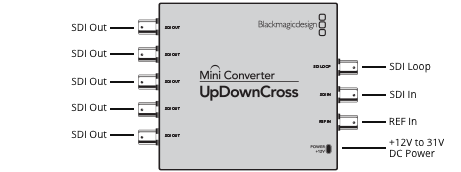

Connections
SDI Video Inputs
1 x SD, HD or 3G-SDI Video Input and 1 x External Reference Input.
SDI Video Outputs
1 x SDI Loop Output and 5 x Outputs at standard set by mini switches.
SDI Rates
270Mb, 1.5G, 3G.
Reference Input
Blackburst and TriSync for SD & HD.
Multi Rate Support
Auto detection of HD or standard definition SDI inputs.
Updates and Configuration
USB
Reclocking
Yes
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24
1080i50, 1080i59.94, 1080i60
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, ITU-R BT.656 and ITU-R BT.601.
SDI Video Rates
SDI video connections are switchable between standard definition and high definition.
SDI Video Sampling
4:2:2
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24 bit .
SDI Color Precision
4:2:2
SDI Color Space
YUV
SDI Auto Switching
Automatically detects SD, HD or 3G‐SDI.
Format Conversion
Up, down, cross conversion and/or NTSC/PAL standards conversion.
Software
Internal Software Upgrade
Via included updater application.
Operating Systems
macOS 10.12 Sierra,
macOS 10.13 High Sierra or later,
Windows 8.1 or Windows 10.
Settings Control
Mini Switches
Power Requirements
Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption
7.00 Watts
Operational Voltage Range
12 - 31V DC
Physical Specifications
Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)
Storage temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Mini Converter UpDownCross
12V universal power supply with international socket adapters
Warranty
3 Year Limited Manufacturer's Warranty.
