Mini Converter Heavy Duty HDMI to SDI 4K
Technical Specifications
Description
Convert SD, HD and Ultra HD HDMI video with HDMI/analog or AES/EBU audio to SDI. Mini Converter Heavy Duty models are machined from a solid block of aircraft grade aluminum so they are super tough and durable enough to be used in the most demanding live production and outside broadcast environments.
Price
$345

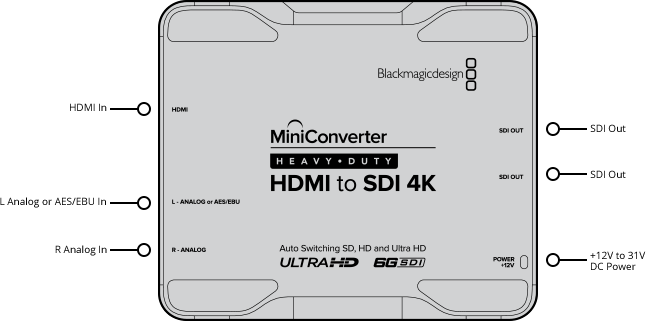

Connections
SDI Video Output
Automatically matches the SD, HD and 6G-SDI HDMI video input.
Analog Audio
2 channels of professional balanced analog audio with standard 1/4 inch jack connections.
AES/EBU Digital Audio
2 channels of professional balanced digital with standard 1/4 inch jack connections.
HDMI
HDMI type A in.
Multi Rate Support
Auto detection of 6G-SDI, Level B 3G-SDI, HD or standard definition SDI inputs.
Updates and Configuration
Via USB 2.0 high speed. (480 Mb/s)
Reclocking
Yes
Standards
SD Format Support
525i59.94 NTSC, 625i50 PAL
HD Format Support
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
Ultra HD Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4K Format Support
4K DCI 24p
SDI Compliance
SMPTE 292M, SMPTE 259M, SMPTE 29 6M, SMPTE 424M-B, SMPTE 425M, ITU-R BT.656, ITU‑R BT.601 and ITU-R BT.709.
SDI Video Rates
SDI video connections are switchable between standard definition and high definition.
SDI Video Sampling
4:2:2
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24-bit.
SDI Color Precision
4:2:2
SDI Color Space
YUV
SDI Auto Switching
Automatically selects between SD SDI, HD-SDI and 6G‑SDI.
HDMI Color Space
YUV and RGB
HDMI Color Precision
4:2:2 and 4:4:4
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Format Conversion
HD down conversion.
Software
Software Control
Mac OS X™ and Windows™ software upgrade via USB.
Internal Software Upgrade
Via included updater application.
Settings Control
Mini Switches or USB software.
Power Requirements
Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption
4.44 Watts
Operational Voltage Range
12 - 31V DC
Operating Systems
macOS 10.12 Sierra,
macOS 10.13 High Sierra or later,
Windows 8.1 or Windows 10.
Physical Specifications
Environmental Specifications
Operating temperature: 0° to 40° C
(32° to 104° F)
Storage temperature: -20° to 45° C
(-4° to 113° F)
Relative Humidity: 0% to 90%
non-condensing
What's Included
Mini Converter Heavy Duty HDMI to SDI 4K
12V universal power supply with international socket adapters
Warranty
3 Year Limited Manufacturer's Warranty.
