Mini Converter Heavy Duty SDI to Analog 4K
Technical Specifications
Description
Convert SDI in SD, HD or Ultra HD to analog video with down converter and audio. Mini Converter Heavy Duty models are machined from a solid block of aircraft grade aluminum so they are super tough and durable enough to be used in the most demanding live production and outside broadcast environments.
Price
$345

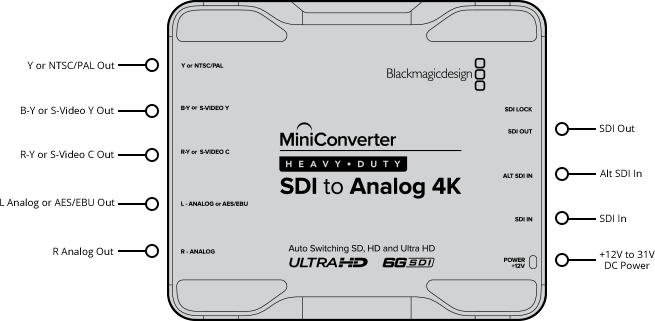

Connections
SDI Video Input
Switchable between SD, HD and 6G‑SDI.
SDI Video Output
Automatically matches the SD, HD and 6G-SDI video input.
Analog Video
NTSC, PAL, S-Video and Component HD from 6G-SDI input.
Analog Audio
2 channels of professional balanced analog audio with standard 1/4 inch jack connections.
AES/EBU Digital Audio
2 channels of professional balanced digital with standard 1/4 inch jack connections.
SDI Redundant Input
Automatically switches over if main SDI input is lost.
Multi Rate Support
Auto detection of 6G-SDI, HD or standard definition SDI inputs.
Updates and Configuration
Via USB 2.0 high speed. (480 Mb/s)
Reclocking
Yes
Standards
SD Format Support
525i59.94 NTSC, 625i50 PAL
HD Format Support
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Format Support
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Ultra HD Format Support
3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30
4K Format Support
4K DCI 24p
SDI Compliance
SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656, ITU‑R BT.601 and ITU-R BT.709
SDI Video Rates
SDI video connections are switchable between standard definition, high definition and UHD.
SDI Video Sampling
4:2:2
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24-bit.
SDI Color Precision
4:2:2
SDI Color Space
YUV
SDI Auto Switching
Automatically selects between SD, HD, Level B 3 Gb/s and 6 Gb/s SDI.
Analog Format Support
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
Analog Color Space
YUV
Analog Color Precision
4:2:2
Format Conversion
HD down conversion
Software
Software Control
Mac OS X™ and Windows™ software upgrade via USB.
Internal Software Upgrade
Via included updater application.
Settings Control
Mini Switches or USB software.
Power Requirements
Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption
8.04 Watts
Operational Voltage Range
12 - 31V DC
Operating Systems
macOS 10.12 Sierra,
macOS 10.13 High Sierra or later,
Windows 8.1 or Windows 10.
Physical Specifications
Environmental Specifications
Operating temperature: 0° to 40° C
(32° to 104° F)
Storage temperature: -20° to 45° C
(-4° to 113° F)
Relative Humidity: 0% to 90%
non-condensing
What's Included
Mini Converter Heavy Duty SDI to Analog 4K
12V universal power supply with international socket adapters
Warranty
3 Year Limited Manufacturer's Warranty.
