Battery Converter HDMI to SDI
Technical Specifications
Description
Convert an HDMI input to SDI output. Convert HDMI camera outputs to SDI for longer cable lengths and professional connectivity on location. Includes SD/HD auto switching and features dual SDI outputs. Includes a built-in lithium-ion polymer rechargeable battery and external power supply.
Price
$295

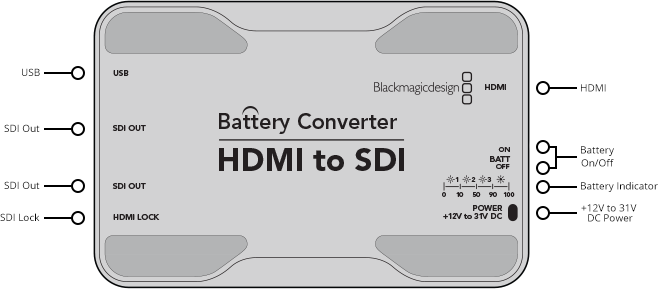

Connections
SDI Video Output
2x SD/HD-SDI outputs automatically match the SD/HD video input.
HDMI
HDMI type A in.
Multi Rate Support
Auto detection of HD or standard definition HDMI inputs.
Software Updates
Via USB 2.0 high speed. (480 Mb/s)
Standards
SD Format Support
525i29.97 NTSC , 625i25 PAL
HD Format Support
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
SDI Compliance
SMPTE 292M , SMPTE 259M , SMPTE 296M , ITU-R BT.656 and ITU-R BT.601 .
SDI Video Rates
SDI video connections are switchable between standard definition and high definition.
SDI Video Sampling
4:2:2
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24 bit .
SDI Color Precision
4:2:2
SDI Color Space
YUV
SDI Auto Switching
Automatically selects between SD-SDI, HD-SDI and Level B 3 Gb/s SDI .
SDI Format Support
525i29.97 NTSC
,
625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
HDMI Format Support
480p60 NTSC
,
576p50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
HDMI Color Space
YUV and RGB
HDMI Color Precision
4:2:2 in all formats and 4:4:4 up to 1080p29.97
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Video Lock Indicator
LED indicates input video signal lock.
Software
Internal Software Upgrade
Via included updater application.
Operating Systems
macOS 10.12 Sierra,
macOS 10.13 High Sierra or later,
Windows 8.1 or Windows 10.
Power Requirements
Power Supply
Integrated Lithium-ion Polymer rechargeable battery. 12V-31V DC port for external battery power or use included 12V AC adapter with international socket adapters for all countries. Cable tie point.
Battery Information
Over 2 hours battery life. Battery charge indicator with On/Off switch to preserve battery life.
Power Consumption
Typically 2.3 Watts
Operational Voltage Range
12 - 31 Vdc
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Battery Converter HDMI to SDI
SD card with software and manual
12V AC adapter with international socket adapters for all countries.
Warranty
12 Months Limited Manufacturer's Warranty.
