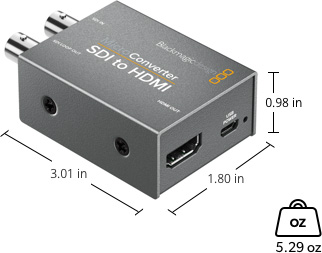

Micro Converter SDI to HDMI
Technical Specifications
Description
Convert from SDI to HDMI so you can output video from professional SDI video equipment to consumer HDMI televisions, projectors and more! The multi rate 3G-SDI automatically switches between all SD and HD formats up to 1080p60. You also get 3G-SDI loop through, support for Level A and Level B equipment, and power over USB!
Price
$85
Connections
SDI Video Inputs
1 x SD, HD or 3G-SDI
SDI Video Outputs
1 x SDI loop out
HDMI Outputs
HDMI Type A out
Multi Rate Support
Auto detection of SD or HD
Updates, Configurations and Power
Micro USB
Standards
SDI Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94,1080p60
1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M
SDI Video Rates
SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI
SDI Color Precision
4:2:2
SDI Color Space
YUV
SDI Auto Switching
Automatically detects SD, HD and 3G-SDI
HDMI Video Standards
525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
HDMI Color Precision
4:2:2
HDMI Color Space
YUV
Software
Software Control
Mac OS X™ and Windows™ software upgrade via micro USB
Internal Software Upgrade
Via micro USB
Operating Systems
macOS 10.12 Sierra,
macOS 10.13 High Sierra or later,
Windows 8.1 or Windows 10.
Settings Control
Via software utility
Power Requirements
+5V universal power supply included with international socket adapters for all countries.
Power Consumption
1.60 Watts
Operational Voltage Range
4.4V to 5.25V DC
Physical Specifications
Environmental Specifications
Operating temperature:
0° to 40° C (32° to 104° F)
Storage temperature:
-20° to 60° C (-4° to 140° F)
Relative Humidity:
0% to 90% non-condensing
What's Included
Micro Converter SDI to HDMI
+5V universal power supply with international socket adapters
Warranty
3 Year Limited Manufacturer's Warranty
