Specifications saved in 2025

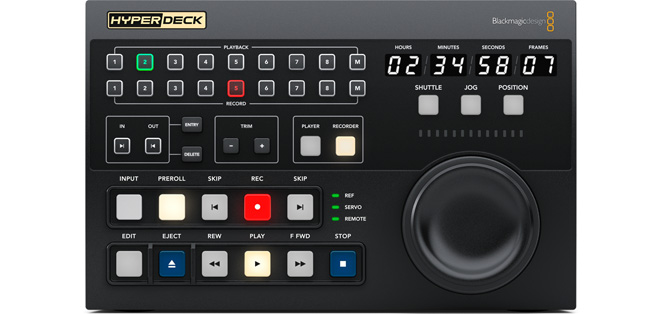

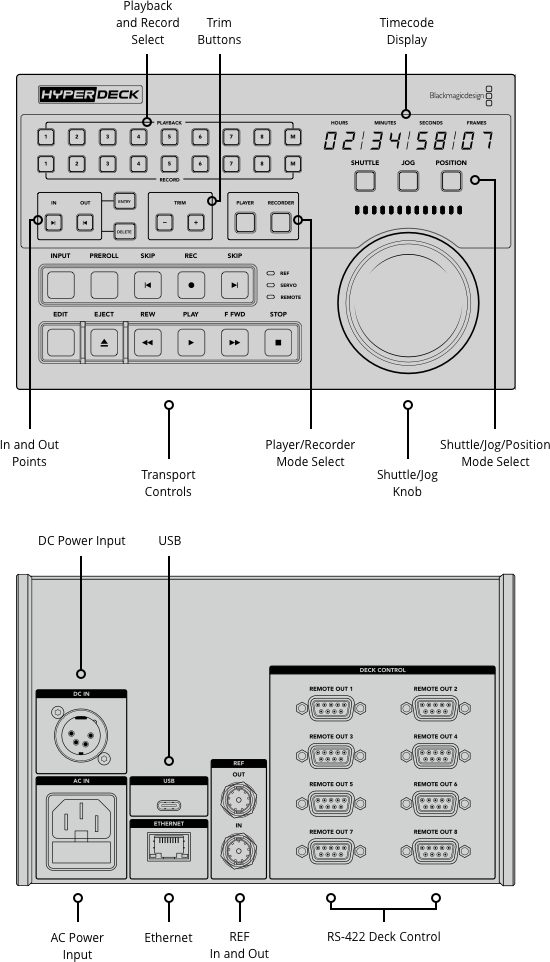

HyperDeck Extreme Control adds traditional broadcast deck controls to HyperDeck Extreme 8K. It works like a traditional broadcast deck with a familiar layout. Control up to 8 decks via industry standard RS-422 control.
$1,545
8 x RS-422
Tri-Sync or Black Burst.
Follows reference input.
1Gb/s
1 x USB-C for software updates.
Sony
Loaded at system start,
or via Blackmagic HyperDeck Setup using USB port.
8 digit, 7 segment LED timecode display.
1 x Internal 100 - 240V AC.
1 x 4 pin XLR 12V DC IN for external power or battery use.
20W max.

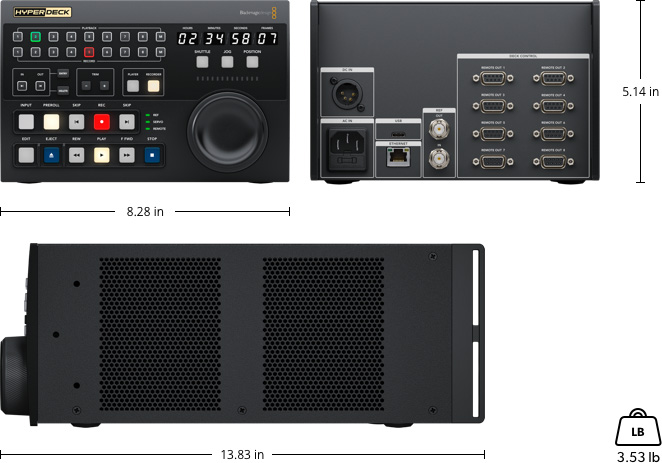

3 rack units height, half rack width.
0° to 40° C (32°to 104° F)
-20° to 60° C (-4° to 140° F)
0% to 90% non-condensing
HyperDeck Extreme Control
Welcome wallet with QR code for software download
1 Year Limited Manufacturer’s Warranty.
