DeckLink 4K Pro
Technical Specifications
Description
DeckLink 4K Pro is a high performance PCI Express capture and playback card with advanced 12G-SDI for working with the latest high frame rate Ultra HD and DCI 4K formats at up to 60 frames per second! Ideal for both traditional 2D and high end 3D stereoscopic workflows, you get support for full resolution, deep color YUV and 12-bit RGB 4:4:4 images. DeckLink 4K Pro features two multi rate 12G-SDI inputs and outputs with support for 16 channels of embedded audio, along with a connection for reference input. Because the connections are multi rate, it works with virtually every SD, HD, Ultra HD and 4K format. DeckLink 4K Pro is perfect for high end film, television and commercial editing, visual effects and color grading projects.
Download Manual Download SoftwarePrice
$595

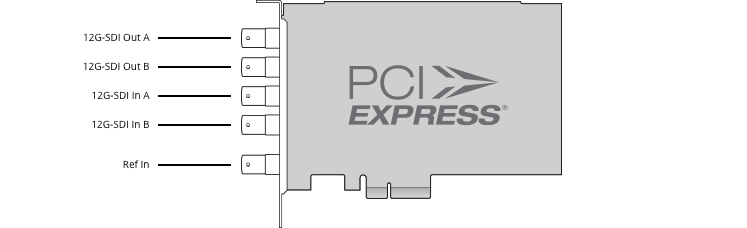

Connections
SDI Video Inputs
2 x 12Gb/s SD/HD/2K/4K. Supports single link and dual link 4:2:2/4:4:4.
SDI Video Outputs
2 x 12Gb/s SD/HD/2K/4K. Supports single link and dual link 4:2:2/4:4:4.
SDI Audio Inputs
16 Channels embedded in SD/HD/2K/4K.
SDI Audio Outputs
16 Channels embedded in SD/HD/2K/4K.
Sync Input
Tri-Sync or Black Burst.
Computer Interface
PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots.
Supported Codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.
Software
Software Included
DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal Software Upgrade
Firmware built into software driver. Loaded at system start or via updater software.
Physical Installation
PCI Express 8 lane generation 2, compatible with 8, 16 lane PCI Express slots on Mac OS, Windows and Linux. Please check the Support pages to see the full system requirements.
Software Applications
Other supported applications include: The Foundry Nuke, Grass Valley Edius, Steinberg Nuendo, Sony Catalyst Production Suite, Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro & Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X & Studio & Broadcast, Uniplay One & CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D.
Video Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Video Standards
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Video Standards
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
3D Video Standards SDI
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 425M, SMPTE 2081, SMPTE 2082, ITU-R BT.656 and ITU-R BT.601.
SDI Metadata Support
RP 188/SMPTE 12M-2 and closed captioning.
Audio Sampling
Television standard sample rate of 48 kHz at 24-bit.
SDI Video Sampling
4:4:4 & 4:2:2
SDI Color Precision
8, 10, 12-bit RGB 4:4:4 in all modes up to UHD 30p, and 8, 10-bit YUV 4:2:2 in all modes.
Color Space
REC 601, REC 709.
Multiple Rate Support
SDI video connections are switchable between SD/HD/2K and 4K.
Processing
Colorspace Conversion
Hardware based real time on output.
3D Processing
Left eye/right eye dual stream capture & playback.
Ultra HD to HD Down Conversion
Built in, high quality hardware down converter outputs Ultra HD to HD or HD to SD down converted signal on SDI B. Down converted SD selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.
HD Up Conversion
Built in, high quality hardware up conversion from SD to 720HD or 1080HD on playback. Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom.
HD Cross Conversion
Built in, high quality hardware cross conversion from 720HD to 1080HD, 1080HD to 720HD on playback.
Real Time Effects
DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Physical Specifications
Operating Systems
Mac OS X 10.11 El Capitan,
macOS 10.12 Sierra,
macOS 10.13 High Sierra or later.
Windows 7, 8.1 and 10, all 64-bit.
Linux
Power Requirements
Power Consumption
20 Watts
EMC Certifications
FCC, CE and C-Tick
Environmental Specifications
Operating Temperature:
5° to 40° C (41° to 104° F)
Storage Temperature:
-20° to 45° C (-4° to 113° F)
Relative Humidity:
0% to 90% non-condensing
What's Included
DeckLink 4K Pro
SD card with software and manual
Warranty
3 Year Limited Manufacturer's Warranty.
