DeckLink 4K Extreme
Technical Specifications
Description
DeckLink 4K Extreme features a high performance design for working in the highest film quality! Get 4 times the resolution of 1080 HD with full Ultra HD 4K capture and playback using 6G-SDI and HDMI 4K support. DeckLink 4K Extreme includes single and dual channel SDI connections for both regular 2D and 3D stereoscopic workflows as well as full resolution color RGB 4:4:4 capture and playback. Includes dual link 6G-SDI, HDMI 3D/4K and analog component, composite, S-video connections. Work in SD, HD and Ultra HD 4K. Also includes AES and analog balanced audio, 16 channel SDI audio, genlock, deck control, broadcast quality up, down and cross conversion, plus built in SD/HD internal keyer.
Download Manual Download SoftwarePrice
$995

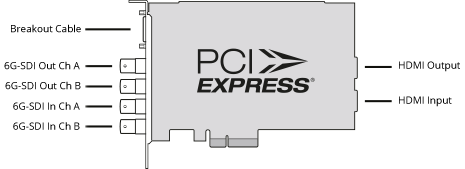

Connections
SDI Video Inputs
2 x 10-bit SD/HD/2K/4K and 2D/3D switchable. Supports 3Gb/s and 6Gb/s single link and dual link.
SDI Video Outputs
2 x 10-bit SD/HD/2K/4K and 2D/3D switchable. Supports 3Gb/s and 6Gb/s single link and dual link.
Analog Video Inputs
1 x Component YUV on 3 BNCs switchable to S-Video or Composite. Component supports HD and SD.
Analog Video Outputs
1 x Component YUV on 3 BNCs switchable to S-Video and Composite. Component supports HD and SD.
Analog Audio Inputs
2 Channels of professional balanced analog audio via XLR connectors.
Analog Audio Outputs
2 Channels of professional balanced analog audio via XLR connectors.
Analog Audio Outputs
2 Channels of professional balanced analog audio via XLR connectors.
AES/EBU Audio Inputs
2 Channels unbalanced with sample rate converter.
AES/EBU Audio Outputs
2 Channels unbalanced.
SDI Audio Inputs
16 Channels embedded in SD/HD/2K/4K.
SDI Audio Outputs
16 Channels embedded in SD/HD/2K/4K.
HDMI Video Inputs
1 x HDMI type A connector including 3D frame packing support and Ultra HD support.
HDMI Video Outputs
1 x HDMI type A connector including 3D frame packing support and Ultra HD support.
HDMI Audio Inputs
8 Channels embedded in SD/HD/4K.
HDMI Audio Outputs
8 Channels embedded in SD/HD/4K.
Sync Input
Tri-Sync or Black Burst.
Device Control
Sony™ compatible RS422 deck control ports. Serial ports TxRx direction reversible under software control.
Computer Interface
PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.
Supported Codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.
Software
Software Included
Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal Software Upgrade
Firmware built into software driver. Loaded at system start or via updater software.
Physical Installation
PCI Express 4 lane generation 2, compatible with 4, 8, 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
Software Applications
Other supported applications include: The Foundry Nuke, Grass Valley Edius, Steinberg Nuendo, Sony Catalyst Production Suite, Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro & Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X & Studio & Broadcast, Uniplay One & CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D.
Video Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Video Standards (SDI ONLY)
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI F25PsF
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50*, 2160p59.94*, 2160p60*
*Output only
4K Video Standards
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p*
*SDI Only
3D Video Standards SDI
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
3D Video Standards HDMI
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
1080i50, 1080i59.94, 1080i60
SDI Compliance
SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 2081, ITU-R BT.656 and ITU-R BT.601.
SDI Metadata Support
RP 188/SMPTE 12M-2 and closed captioning.
Audio Sampling
Television standard sample rate of 48 kHz at 24-bit.
SDI Video Sampling
4:2:2, 4:4:4*
*4K is 4:2:2.
SDI Color Precision
8, 10, 12-bit* RGB 4:4:4 in all modes up to 2K DCI 25p and 8, 10-bit YUV 4:2:2 in all modes.
*12-bit RGB is output only.
Color Space
REC 601, REC 709
HDMI Video Sampling
4:4:4, 4:2:2 & 4:2:0
HDMI Color Precision
8 & 10-bit (Deep Color)
HDMI Configuration
HDMI 1.4b. Automatically configures to connected display.
Multiple Rate Support
HDMI and SDI video connections are switchable between SD/HD/2K and 4K. Component analog video connections are switchable between SD and HD.
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Processing
HD Up Conversion
Built in, high quality hardware up conversion from SD to 720HD or 1080HD on playback. Selectable between 4:3 pillarbox, 14:9 pillarbox and 16:9 zoom. HD outputs via HD-SDI, HDMI and component analog.
HD Down Conversion
Built in, high quality hardware down converter outputs HD-SDI on SDI A output, SD-SDI on SDI B output and Composite and S-Video when working in HD video formats on playback. Switch analog video to Component and choose HD or SD output. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.
Cross Conversion
Built in, high quality hardware cross conversion from 720HD to 1080HD and 1080HD to 720HD on playback.
Real Time Effects
DaVinci Resolve, Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Colorspace Conversion
Hardware based real time.
3D Processing
Dual stream and frame packed capture & playback.
Power Requirements
Power Consumption
21 Watts
Operating Systems
Mac OS X 10.11 El Capitan,
macOS 10.12 Sierra,
macOS 10.13 High Sierra or later.
Windows 7, 8.1 and 10, all 64-bit.
Linux
EMC Certifications
FCC, CE and C-Tick
Physical Specifications
Environmental Specifications
Operating Temperature
5° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included

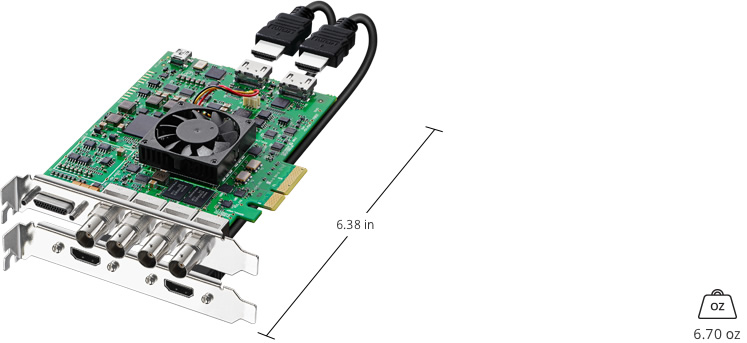

DeckLink 4K Extreme
SD card with software and manual
Breakout cable for analog and RS-422 control.
HDMI bracket
Warranty
3 Year Limited Manufacturer's Warranty.
