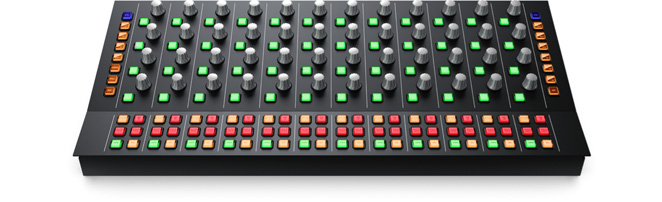

Fairlight Console Channel Control

Fairlight Console Channel Control

Technical Specifications

Description

Fairlight Console Channel Control is a multi function panel designed to extend the functionality of your channel faders. You get 12 groups of touch sensitive control knobs and illuminated buttons that can be assigned to a single channel, the 12 adjacent fader channels or the master bus. This gives you fast access to 192 different parameter controls per channel! Your selections control the LCD monitor so you have a precise display of your changes as you make them.

Price

$2,815

Connections

Ethernet

Ethernet supports 10/100/1000 BaseT.

Updates and Configuration

1 x USB Type‑C for software configuration and software updates.

Software

Internal software upgrade via updater application.

Operating Systems

Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.

Windows 10 Creators Update
Windows 11
Windows 11 for ARM

Rocky Linux 8.6

Settings Control

Fairlight Studio and Console setup utility software when connected by USB.

Power Requirements

Power Supply

Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.

Power Usage

20W max.

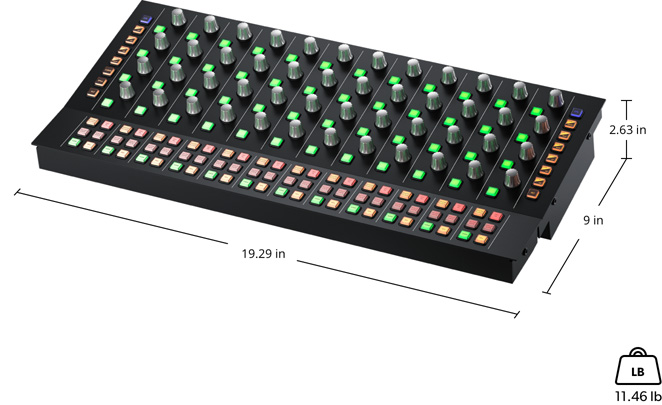

Physical Specifications

Fairlight Console Channel Control

Environmental Specifications

Operating Temperature

0° to 40°C (32° to 104°F)

Storage Temperature

-20° to 60°C (-4° to 140°F)

Relative Humidity

0% to 90% non-condensing

What's Included

Fairlight Console Channel Control

Warranty

1 Year Limited Manufacturer’s Warranty.
