Specifications saved in 2025

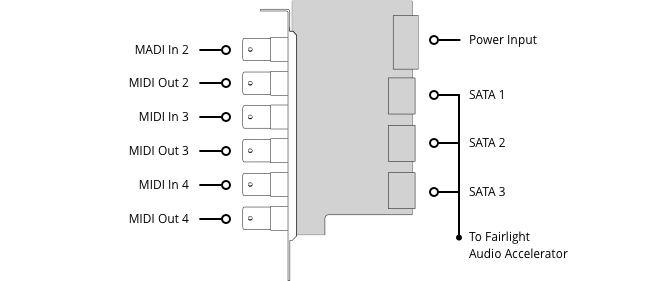

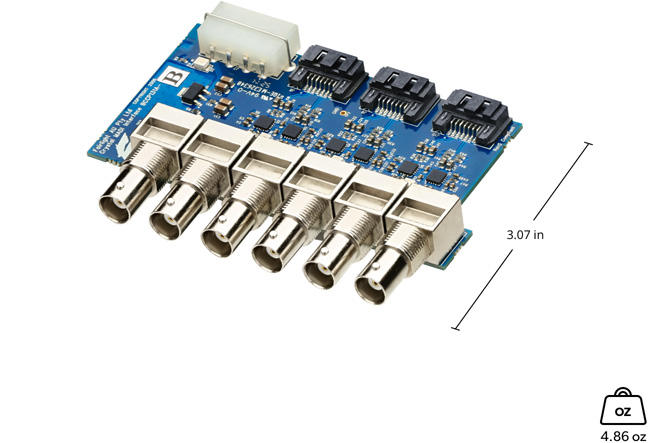

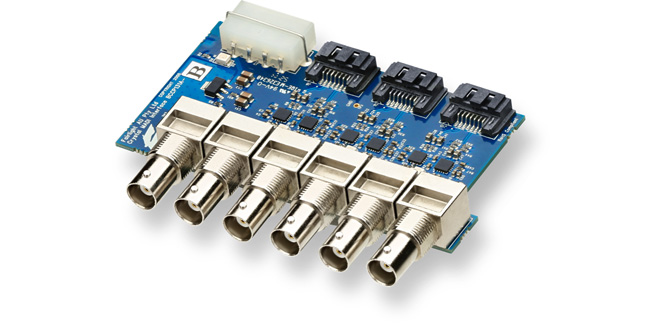

Fairlight Audio MADI Upgrade adds three coax MADI input and output connections to the single MADI on the Fairlight Accelerator card. That gives you a total of four MADI inputs and four MADI outputs for 256 inputs and outputs each at 24 bit / 48kHz!
$219
3 x MADI inputs via 75 ohm BNCs
3 x MADI outputs via 75 ohm BNCs
Total of 192 inputs and outputs
24 bit / 48kHz
Single half length PCIe x4 board
4‑pin computer power cable connector.
Requires Fairlight Audio Accelerator.
Connection to Fairlight Audio Accelerator using three SATA cables.
Fairlight Audio MADI Upgrade board requires no additional PCIe bandwidth.
4W
0° to 40°C (32° to 104°F)
-20° to 60°C (-4° to 140°F)
0% to 90% non-condensing
Fairlight Audio MADI Upgrade
3 x 30cm SATA cables.
1 x computer power cable.
1 Year Limited Manufacturer’s Warranty.
