Specifications saved in 2025

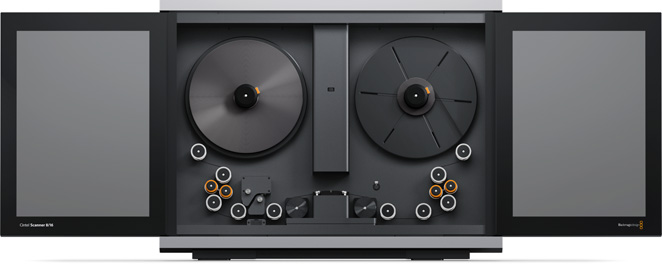

Cintel Scanner G3 HDR+ 8/16 is an advanced 8mm HD and 16mm Ultra HD film scanner with optics specifically designed for higher resolution capture of smaller format film. Includes capstan based transport for delicate archive film, new light source for higher speed realtime HDR, powerful film restoration tools with DaVinci Resolve and scanning via Thunderbolt to Mac and Windows computers.
$35,255
Print, Negative, Interpositive, Internegative.
Mono and Color.
16mm, Super 16mm
8mm, Super 8mm
4096 x 3072
2966 x 1781 - Super 16
2464 x 1798 - Standard 16
1390 x 994 - Super 8
1172 x 884 - Standard 8
3840 x 2160 Ultra HD
1920 x 1080 HD
(auto selected to match monitor resolution)
Normal Scans: 12 stops
HDR Scans: up to 3.5 additional stops
Extraction from scanned image.
Rubber Capstan.
Diffuse light source. Cleaning rollers.
Desk Mount. Wall Mount.
Run speed:
1 - 30 fps
Shuttle:
1 - 150 fps (16mm)
1 - 200 fps (8mm)
10 - 60 fps/s
Up to 2% guaranteed, more may be possible if user care is taken.
2000 ft
1 x HDMI 1.4 10-bit 4:2:2 for preview purposes only.
Thunderbolt™ 3 for capture of image and audio, software updates and supports USB-C charging with 15W at 5V.
PCI Express 4 lane generation 2.
XLR3 Bi-phase: 4.5 Volt DC coupled.
Timecode: 1.5 Volt DC coupled with support for 24, 25 and 30 fps.
2 Channels of professional balanced analog audio with sample rate converter via XLR connectors with 10dBV levels.
1 Channel with sample rate converter on XLR connector.
XLR6
Cintel Scanner 16mm Gate HDR
Cintel Scanner 8mm Gate HDR
Cintel Audio and KeyKode Reader
Cintel Cleaning Roller Kit
Blackmagic PCI Express Cable Kit
* Capstan models only including C-Drive, G3 and G3 HDR+
100 - 240V AC.
200W
18 to 28°C (64.4º to 82.4º F).
Maximum 65% non-condensing.
Cintel Scanner G3 HDR+ 8/16
Desk Stand
8 x 1mm Reel Spacers + 16mm Packer kit
Cintel Scanner 16mm HDR Gate
Cintel Scanner 8mm HDR Gate
DaVinci Resolve Studio Dongle
Welcome wallet with QR code for software download
1 Year Limited Manufacturer’s Warranty.
