Cintel Scanner
Technical Specifications
Description

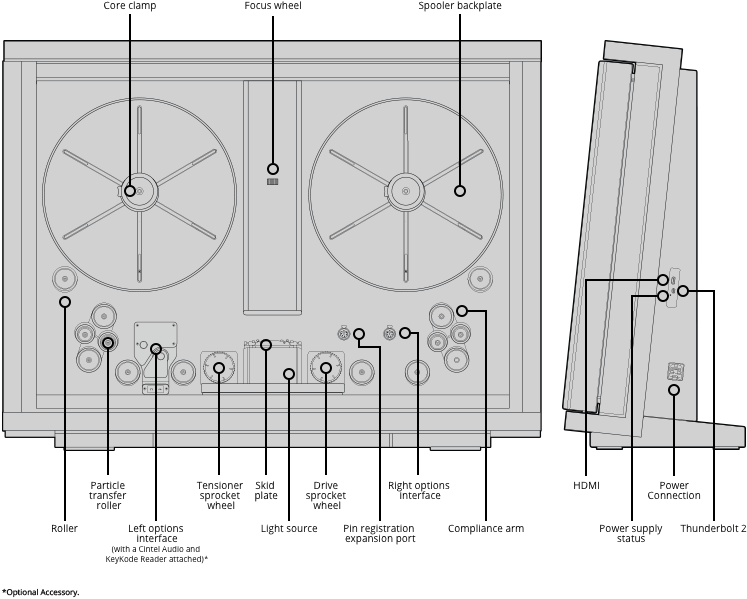

The Cintel Scanner is a complete solution to realtime film scanning and grading that features precision mechanical film handling components, optics, a high intensity diffuse light source and a built in camera. The Cintel Scanner includes a 35mm film gate, film spools, a set of four cleaning rollers, desk mount feet and DaVinci Resolve Studio software. Cintel transfers film directly to DaVinci Resolve which gives you the power to edit film rolls back together, scans to be color graded, reframed, noise reduced and audio extracted. Using DaVinci Resolve to operate the scanner means you have much more creative control than a simple telecine because DaVinci Resolve has many more features than is possible to do in hardware.
Price
$29,995
Excludes freight cost
Scanner Features
Film Stocks
Print, Negative, Interpositive, Internegative.
Mono and Color.
Film Gauges
35mm (2, 3, 4 perforations) Super 35mm (2, 3, 4 perforations)
16mm, Super 16mm
Native Resolution
4096 x 3072
Effective Resolutions
3840 x 2880 - Super 35
3390 x 2864 - Standard 35
3390 x 2465 - Anamorphic 35
1903 x 1143 - Super 16
1581 x 1154 - Standard 16
HDMI Formats
3840 x 2160 Ultra HD
1920 x 1080 HD
(Auto selected to match monitor resolution)
Audio
Extraction from scanned image.
Dirt and Scratch Reduction
Diffuse light source. Cleaning rollers.
Mounting Options
Desk Mount. Wall Mount.
Transport Features
Continuous Motion
Run speed:
1 - 30 fps
Shuttle:
1 - 100 fps (35mm)
1 - 200 fps (16mm)
Acceleration
5 - 30 fps/s
Film Shrinkage Tolerance
Up to 2% guaranteed, more may be possible if user care is taken.
Capacity
2000 ft
Connections
HDMI Video Output
1 x HDMI 1.4 10-bit 4:2:2 for preview purposes only.
Computer Interface
Thunderbolt 2 for capture of image and audio.
Options Interface
XLR6 connection for optional accessories.
Operating Systems
Mac OS X 10.11 El Capitan,
macOS 10.12 Sierra or later.
Windows 7, Windows 8 or Windows 10.
Acessories
16mm accessory pack.
Audio and KeyKode Reader.
Audio and KeyKode Reader
Equalisation
Optical audio SMPTE, Magnetic audio IEC.
Supported KeyKode Scan Speeds
All scanner speeds.
LED Type
Optical audio and KeyKode Deep RED.
Supported Audio Scan Speeds
6fps-125% chosen film rate i.e. 24fps film frame rate has a 30fps maximum scan speed.
Supported Optical Audio Types
Variable Area. Variable Density.
Optical Audio 35mm
Bandwidth: 40Hz-16kHz +-2dB
SnR Signal to Noise Ratio: Transparent film base -65dB
Wow and Flutter: < 0.15%
Optical Audio 16mm
Bandwidth: 40Hz-7kHz +-2dB
SnR Signal to Noise Ratio: Transparent film base -65dB
Wow and Flutter: < 0.3%
Magnetic Audio
Engagement Pressure: 15 grams
Bandwidth: 32Hz-14kHz +-2dB
SnR Signal to Noise Ratio: -55dB
Wow and Flutter: < 0.3%
Full Modulation Level
-18dBFS
Headphones Level
-18dBu at 50Ω load
Computer Interface
Generic USB C Cable. Not Thunderbolt.
Power Consumption
Voltage 12V. Power 10W.
Dimensions
Height: 156 mm
Width: 92 mm
Depth: 106 mm
Weight: 1.35 kg
Power Requirements
Voltage Range
90 - 240V AC
Power
200W
Physical Specifications
Ideal Film Conditions
Operating Temperature
18 - 28C
Relative Humidity
Maximum 65% non - condensing
What's Included
Cintel Scanner
Desk Stand
8 x 1mm Reel Spacers
Cintel Scanner 35mm Gate
DaVinci Resolve Studio Software
Cintel Software and Manual
Warranty
12 Month Limited Manufacturer's Warranty.
