Specifications saved in 2025
When you want the fastest routing you can get, then Videohub Smart Control Pro lets you route with a single button press. Program each button for a single router cross point and when pressed the route is made. You can program to have multiple destinations and even a take button! Plus Videohub Smart Control Pro can be configured to be a Videohub or 2110 NMOS controller. Powers via DC or the Ethernet connection!
$875
RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out.
In and Out (for future implementation)
USB-C for configuration and software updates.
100 - 240 AC
Up to 10 macro buttons can be assigned to activate multiple simultaneous switching commands.

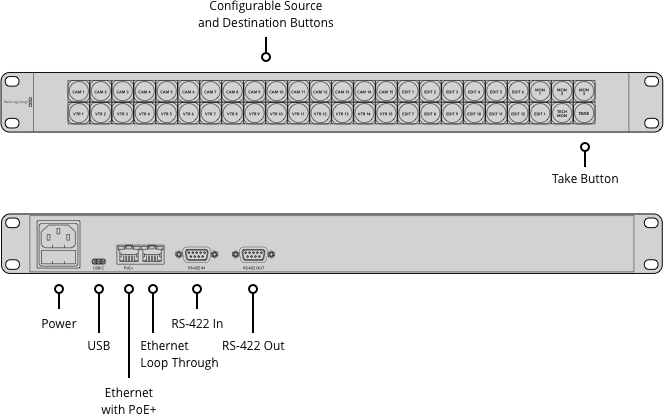

48 programmable buttons and RJ45 Ethernet used for remote control of routers over an IP network.
IEEE 1588‑2008 (PTP v2)
ST 2059‑1
ST 2059‑2
v1.3.2
Peer‑to‑peer via mDNS/DNS‑SD
v1.1.2
Natural Grouping
Receiver capabilities
Internal Software upgrade via included firmware updater application via USB.

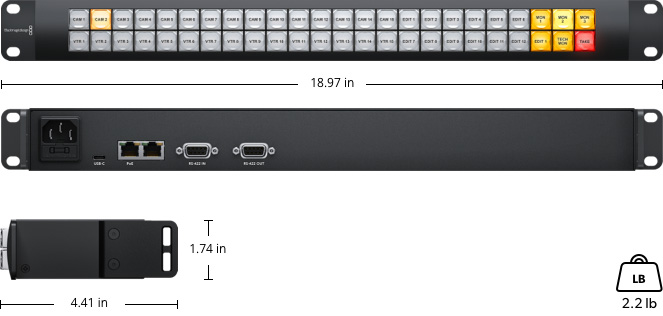

1 rack unit size. Less than 3 inches deep.
Included free for Windows™ and Mac™ via USB 2.0 high speed (480Mb/s) interface.
Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall.
Internal 100 - 240 V AC
-20° to 45° C (-4° to 113° F)
0% to 90% non-condensing
Videohub Smart Control Pro
1 Year Limited Manufacturer’s Warranty.
