When you need to access your whole router without sacrificing speed, then Videohub Master Control Pro lets you scroll your router sources and destinations with the easy to use spin knob control or via direct button entry. You can even see all routes on the beautiful LCD! Plus Videohub Master Control Pro can be configured to be a Videohub or 2110 NMOS controller. Powers via DC or the Ethernet connection!
$855

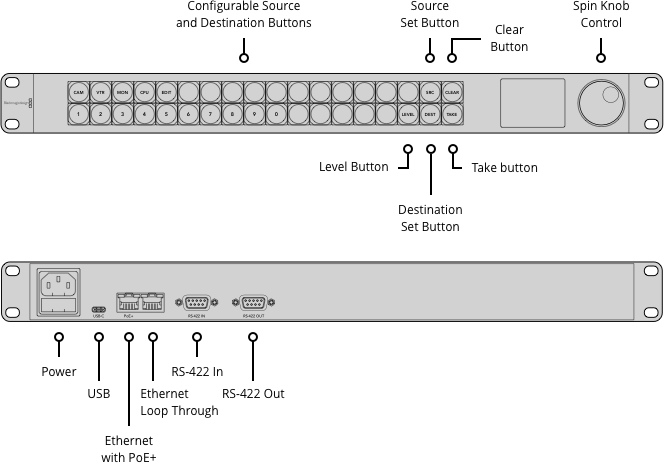

RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out.
In and Out (for future implementation)
USB-C for configuration and software updates.
100 - 240 AC
21 assignable buttons with scroll wheel for fast selection of source and destination. LCD information screen.
IEEE 1588‑2008 (PTP v2)
ST 2059‑1
ST 2059‑2
v1.3.2
Peer‑to‑peer via mDNS/DNS‑SD
v1.1.2
Natural Grouping
Receiver capabilities
Internal Software upgrade via included firmware updater application via USB or ethernet.

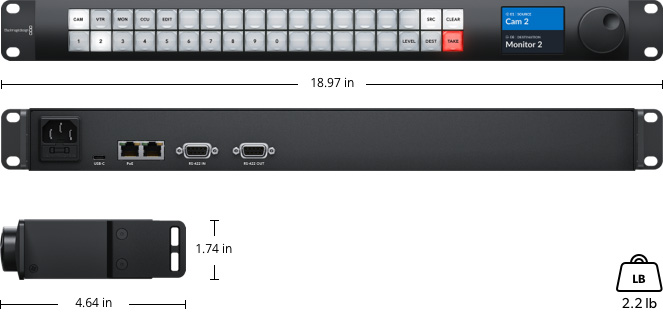

1 rack unit size. Less than 3 inches deep.
Included free for Windows™ and Mac™ via USB 2.0 high speed (480Mb/s) interface.
Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall.
Internal 100 - 240 V AC
0° to 40° C (32° to 104° F)
-20° to 45° C (-4° to 113° F)
0% to 90% non-condensing
Videohub Master Control Pro
1 Year Limited Manufacturer’s Warranty.
