Blackmagic Video Assist 4K
Technical Specifications
Description
Now it’s easy to add professional monitoring and broadcast quality recording to any SDI or HDMI camera! With a bright 7 inch monitor that’s larger than the built in screen on most cameras, Video Assist 4K makes it easier to frame your shots and get absolutely perfect focus! The dual built in high speed UHS-II recorders use commonly available SD cards to record HD and Ultra HD video as professional 10-bit 4:2:2 ProRes or DNxHD files. Unlike DSLRs, which record heavily compressed files that are hard to use with video software, Video Assist records professional, 10 bit broadcast quality files such as ProRes and DNxHR that are compatible with all leading video software so you can start editing immediately, without time wasting file conversions!
Price
$895

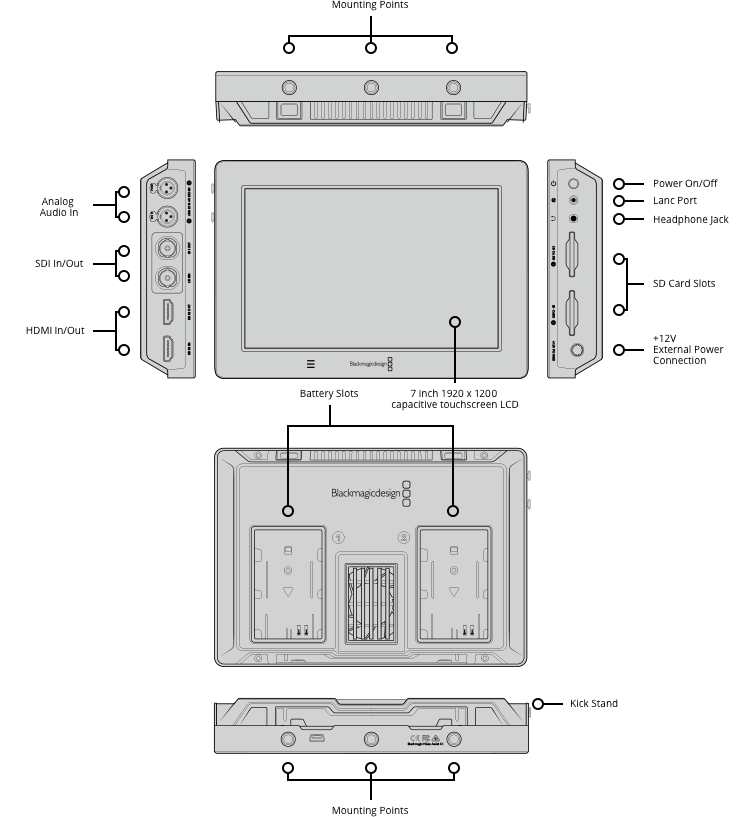

Connections
SDI Video Inputs
1
SDI Video Outputs
1
SDI Rates
270Mb, 1.5G, 3G, 6G.
HDMI Video Inputs
1
HDMI Video Outputs
1
Analog Audio Inputs
2 x balanced mini XLR with phantom power
Analog Audio Outputs
1 x 3.5 mm headphone jack.
Built in Speaker
Mono
Screen Dimensions
7 inch 1920 x 1200.
SDI Audio Inputs
2 channels embedded via 6G-SDI
SDI Audio Outputs
2 channels embedded via 6G-SDI
HDMI Audio Inputs
2 channels embedded via HDMI 2.0a
HDMI Audio Outputs
2 channels embedded via HDMI 2.0a
Remote Control
1 x 2.5mm LANC for Record Start and Stop.
SD Interface
Dual UHS-II SD slots
Storage Type
Removable SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards.
Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.
Recorder Configuration
Via the device's USB port or the device's user interface.
Computer Interface
1 x Mini-B USB 2.0 connector for initial setup, software updates and Video Assist Utility software control.
SDI Video Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30.
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M 2084
SDI Metadata Support
HD RP188
Audio Sampling
Television standard sample rate of 48 kHz and 24-bit.
Video Sampling
4:2:2 YUV
Color Precision
10-bit
Color Space
REC 601, REC 709
Multiple Rate support
SDI and HDMI switches between 270 Mb/s SD , 1.5 Gb/s HD , and 3.0 Gb/s 60P HD plus 6.0 Gb/s 30p Ultra HD.
HDMI Video Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
HDMI Color Precision
10-bit
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Media
Media
2 x UHS-II SD for Ultra HD, compatible with regular SD for HD recording.
Media Type
SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards.
Supported Codecs
ProRes 422 HQ, ProRes 422, ProRes 422 LT, ProRes Proxy, DNxHD 220x, DNxHD 145, DNxHD 45, DNxHD 220x MXF, DNxHD 145 MXF, DNxHD 45 MXF, DNxHR HQX MXF, DNxHR HQX, DNxHR SQ, DNxHR LB, DNxHR SQ MXF, DNxHR LB MXF.
Control
Recorder Control
Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus.
External Control
LANC, SDI start/stop, timecode run.
Operating Systems
macOS 10.12 Sierra,
macOS High Sierra 10.13 or later.
Windows 8.1 or Windows 10.
Power Requirements
Power Supply
1 x External 12V power supply.
LP-E6 Lithium-Ion batteries not included.

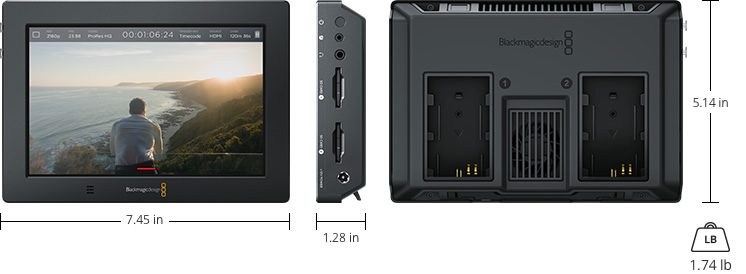

Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-21° to 45° C (-6° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Blackmagic Video Assist 4K
Universal power supply with international adapters
SD card with software and manual
Warranty
12 Month Limited Manufacturer’s Warranty.
Excluding: batteries and cables which will be free from defects in materials and workmanship for a period of 12 months from the date of purchase.
