Blackmagic Audio Monitor
Technical Specifications
Description
Blackmagic Audio Monitor gives you fantastic quality audio monitoring in an impossibly small one rack unit size! With a dual subwoofer design combined with extra wide range speakers all backed by a super powerful class A/B amplifier. Blackmagic Audio Monitor has been designed to be both an audio and video monitoring solution so you get advanced 6G-SDI in, as well as balanced XLR analog audio, balanced AES/EBU digital audio and consumer level HiFi audio inputs. Blackmagic Audio Monitor features an elegant design with big bright multi color audio meters and a built in LCD for monitoring video sources. You even get HDMI 4K output so you can connect a television for big screen video monitoring of your SDI sources!
Price
$1,495

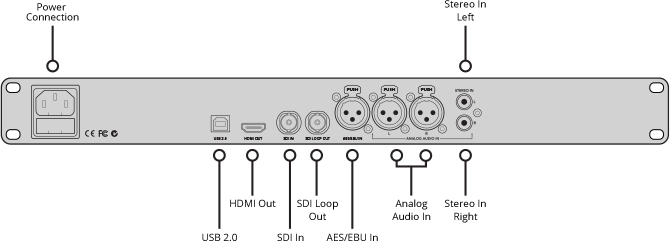

Connections
SDI Video Inputs
1
SDI Video Outputs
1 loop out.
SDI Rates
270Mb, 1.5G, 3G, 6G.
HDMI Video Outputs
1
Multi Rate Support
SDI and HDMI are switchable between standard definition and high definition.
SDI Video Loop
1 x reclocked 10-bit SD/HD/3G-SDI and 6G-SDI switchable.
Analog Audio Inputs
2 x XLR. 2 x RCA HiFi.
Analog Audio Outputs
1 x 6.5mm headphone socket.
Digital Audio Inputs
1 x XLR.
Built in Speaker
Stereo with 2-way crossover and independent stereo subwoofers.
AES/EBU Audio Inputs
2 channels balanced 110Ω AES/EBU via XLR.
SDI Audio Inputs
16 channels embedded in SD, HD and UltraHD 4K.
SDI Audio Outputs
16 channels embedded audio loop out.
HDMI Audio Outputs
8 Channels embedded in SD, HD and 4K.
Metering
2 x 27 RGB segment LED VU meters.
Modes
Pushbutton interface allows for input selection, channel selection, independent left and right audio, mute and volume control with scroll wheel.
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Video Standards
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K 23.98PsF, 2K 24PsF, 2K 25PsF
Ultra HD Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
SDI Compliance
SMPTE 259M , SMPTE 292M , SMPTE 372M , ITU-R BT.656 and ITU-R BT.601 .
SDI Auto Switching
Automatically selects between SD, HD, 3G-SDI and 6G-SDI.
Audio Sampling
96 kHz and 24 bit .
Video Sampling
4:2:2 and 4:4:4
Audio Meter Ballistics
54 RGB segment LEDs allowing selection of metering with VU, PPM EBU, PPM BBC or Loudness. Includes replaceable level scale.
Control
Built-in Control Panel
2.2 inch display for viewing video input, video standard and selected audio input.
Software
Internal Software Upgrade
Via USB connection.
Operating Systems
Mac OS X 10.11 El Capitan,
macOS 10.12 Sierra or later.
Windows 8.1 or
Windows 10.
Display
Display Element
2.2 inch diagonal color LCD.
Display Resolution
320 x 240.
Input Display
SDI video, format, audio type and audio channels.
Power Requirements
Power Supply
1 x Internal 100 - 240V AC.
Power Usage
< 60 Watts

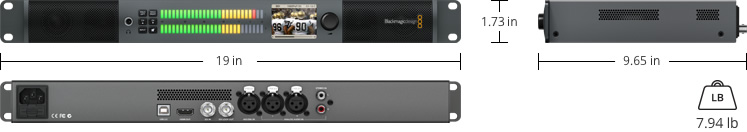

Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Blackmagic Audio Monitor
SD card with software and manual
Warranty
12 Month Limited Manufacturer's Warranty.
