Specifications saved in 2025

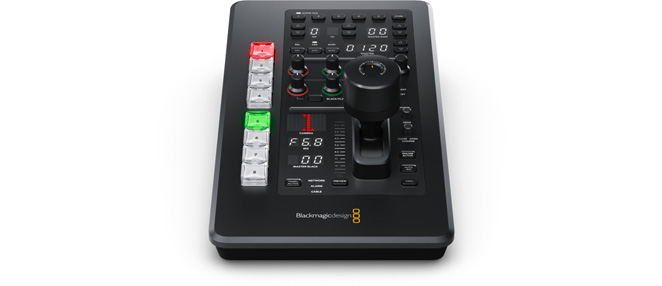

ATEM Micro Camera Panel is a portable camera panel with high end broadcast CCU controls. Control iris, pedestal, shutter, white balance, master gain, RGB balance and more for up to 8 cameras from a single panel. Connects to ATEM Software Control via Bluetooth or USB‑C.
$675
USB Type‑C.
Bluetooth 5.1 LE
1 x USB‑C for firmware updates.
8 x NKK buttons.
Assignable via setup utility.
Green off air, red on air.
White and black balance setup.
Flare via modifier key.
1
1
Auto Iris On, Coarse control.
CLS f32 to f1.2
-12dB to +32dB
0, 2, 4, 6.
1/24 to 1/2000
2500K to 10,000K
5 per camera.
Protects settings.
ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.
Internal battery with power switch.
USB-C port for external power supply and battery charging.
4 W max.
Minimum 3 hours.
(under normal use)
5° to 40° C (41° to 104° F)
-20° to 45° C (-4° to 113° F)
0% to 90% non‑condensing
ATEM Micro Camera Panel
Welcome wallet with QR code for software download
1 x USB‑C cable
1 Year Limited Manufacturer’s Warranty.
