ATEM 1 M/E Broadcast Panel
Technical Specifications
Description
When the software control panel is too limited, the ATEM 1 M/E Broadcast Panel is a professional panel with the highest quality buttons, knobs and controls for the most demanding 24/7 live production environment. The ATEM 1 M/E Broadcast Panel is compact so it fits within a rack width! You get full control of your switcher, including cameras, transitions, keyers, fader, DVE control and more. ATEM 1 M/E Broadcast Panel connects via ethernet and includes a loop thru connection for more than one panel or computer.
Price
$4,995

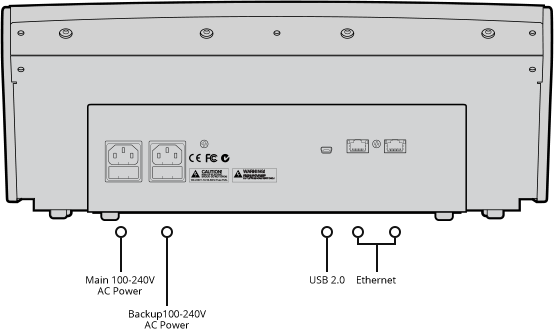

Connections
Ethernet
10/100/1000 BaseT with loop output for additional control panels or computers.
Software Updates
1 x USB for firmware updates
Product Specifics
Direct Cross Points
10
Shifted Cross Points
20
Crosspoint Button Type
Tri-Color LED.
Crosspoint Label
4 Character LED.
Next Transition Selectors
BKG, Key 1 - Key 4.
On-Air indicator
Yes
Power Status Indicators
4
DSK Transition Selectors
Auto, Cut, Tie/Preview.
Preview Transition
1
Transition Rate Displays
2
LED Menu Display
2
Menu Control
12 x LCD Bitmap Buttons.
Dedicated Macro Buttons
None
Multi Control Buttons
None
Destination Bus
1
Source Select Bus
1
Fader Bar
1
3 Axis Joystick
1
Numeric Keypad
1
Software
Software Applications
ATEM Software Control Panel.
Operating Systems
Mac OS X 10.10 Yosemite,
Mac OS X 10.11 El Capitan or later.
Aerospace Certified Embedded OS.
Windows 8.1 64-bit or
Windows 10 64-bit.
Aerospace Certified Embedded OS.
Power Requirements
Input Voltage
2 x Internal 110 - 240V AC.
Redundant Power
Yes
Power Usage
40W

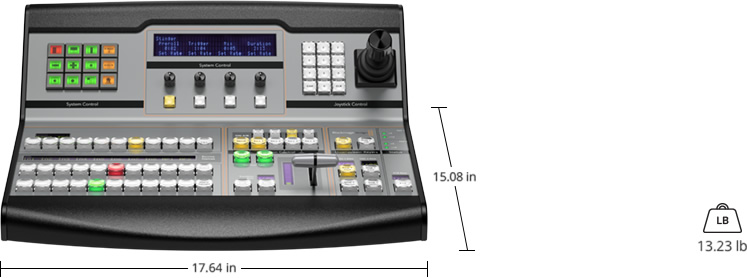

Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
Up to 95%
What's Included
ATEM 1 M/E Broadcast Panel
Warranty
12 Month Limited Manufacturer's Warranty
Repair Policy
Warranty details can be found in the ATEM Switchers Operation Manual in the support page at www.blackmagicdesign.com
